The Lost Castle
in Darkmist

Reader snapshot

The Lost Castle in Darkmist, usually shortened to Darkmist, is a fantasy arcade action game developed by Seibu Kaihatsu and released through Taito with a 1986 copyright. In the United States, World Games later marketed it under license from Taito America as a conversion kit. The game superficially resembles the overhead forced-scroll action games that were common in the middle 1980s, yet it keeps undermining that first impression. Towns interrupt the march. Treasure functions as barter. Equipment changes damage and terrain rules. Cursed pickups punish careless collecting. Dungeons abandon the outdoor scroll for maze navigation. The player is expected to learn what to ignore as carefully as what to attack.

Darkmist is therefore best understood not as a simple fantasy shooter or hack-and-slash, but as an arcade action game with unusually strong action-RPG and adventure-game behavior. That distinction matters, because the game's difficulty is largely built around knowledge. A blind player can fail because they do not know an item icon, a dungeon branch, a safe route, an enemy property or the correct use of magic. The controls are simple; the decisions are not.

Its historical afterlife is equally unusual. The game left a remarkably faint trail: Japanese board sales, a U.S. conversion kit, a small amount of contemporary coverage, no major home port yet located, very few recognizable surviving machines, and sparse modern strategy documentation. In 2022 and 2023, arcade enthusiasts at Mikado in Japan organized what they jokingly called a Darkmist Research Group to work out the game in public. That modern investigation became one of the most useful surviving gameplay records.

Identity, title and attribution

The full title appears as The Lost Castle in Darkmist. The shorter Darkmist or Dark Mist appears frequently in flyers, trade coverage, U.S. material and later databases. The title screen itself carries the longer wording together with a 1986 Taito copyright notice.

The development attribution is firm at the company level: Seibu Kaihatsu developed the game, with Taito handling the Japanese release/licensing relationship. The MAME source examined for this profile identifies the manufacturer as “Seibu Kaihatsu (Taito license).” Museum of the Game likewise states that Seibu developed the game and Taito released it, and that it was licensed to World Games for the United States.

Individual development credits remain undocumented. Names mentioned in later Seibu-related discussion cannot securely be assigned a design, programming, art or sound role on Darkmist. Seibu Kaihatsu is confirmed; individual staff remain undocumented.

This distinction is important because MAME's driver credits name David Haywood, Nicola Salmoria and Tomasz Slanina. Those are emulator-driver contributors, not original Darkmist developers.

Date and release chronology

The title screen and the examined MAME source source both identify the game as ©1986 Taito / Seibu. Japanese Game Machine trade coverage in the February 1, 1987 issue describes Darkmist as a current Taito PCB product and gives its gameplay outline and operator price. A March 15, 1987 Game Machine product roundup again lists it as a board-only Taito product.

Several later databases give a January 1987 Japanese release, which is plausible and consistent with early-1987 trade coverage, but this research did not locate a stronger period-primary source that cleanly states a precise January release day. The evidence supports this distinction:

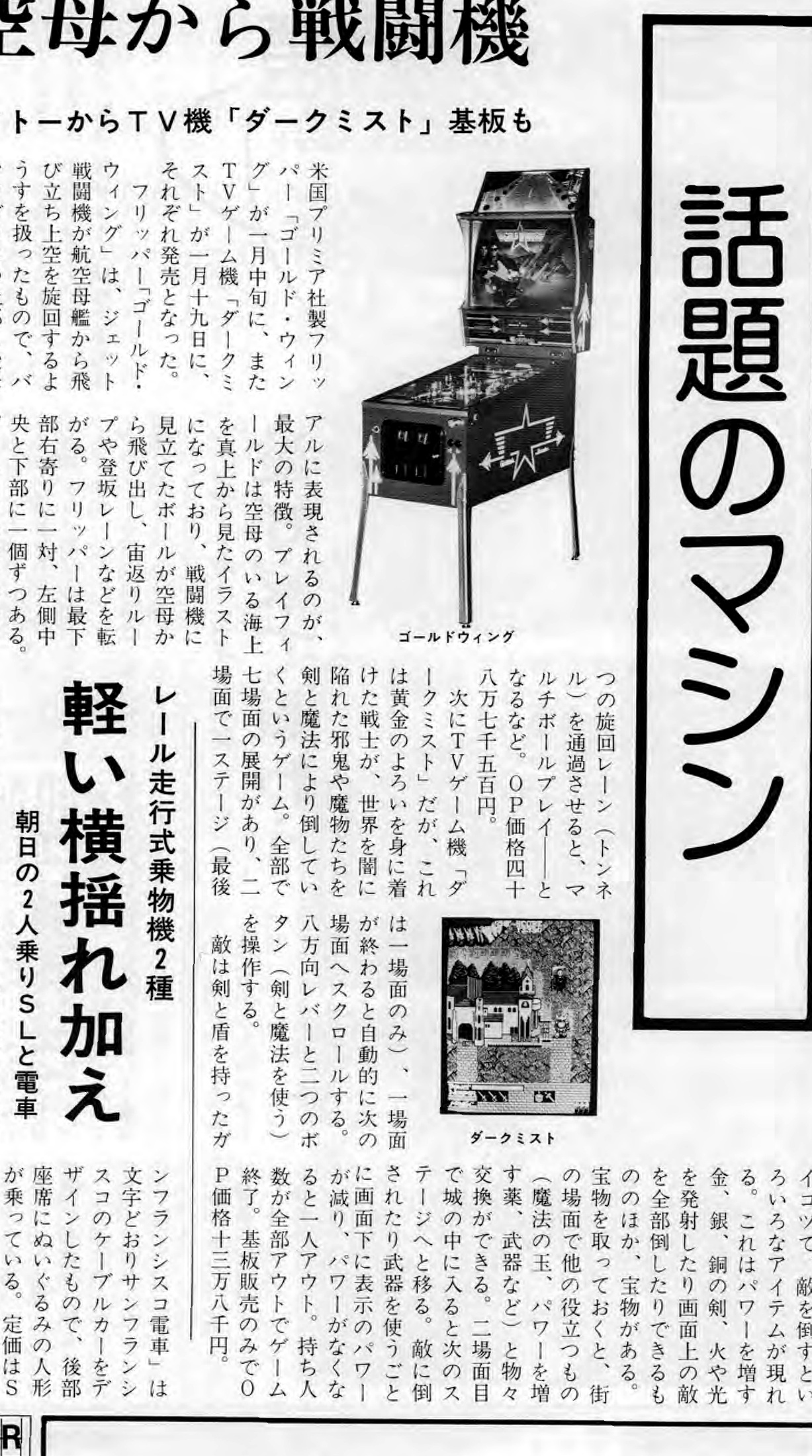

©1986 Taito/Seibu Kaihatsu; in Japanese amusement trade by early 1987.

The profile uses 1986 for the title-screen copyright, while distinguishing the early-1987 Japanese trade coverage and later January 1987 catalog dates.

A separate U.S. legal-record lead adds useful nuance without settling a release date. A federal trademark-record mirror for THE LOST CASTLE IN DARKMIST, filed by Taito Corporation on June 8, 1987, reports a claimed date of first use of November 4, 1986 and lists Taito America Corporation counsel. That is meaningful evidence that the title had a U.S.-commerce/legal footprint before the later trade announcement, but a trademark first-use date should not automatically be rewritten as the date when operators broadly received the game. It is a chronology clue, not a definitive arcade-launch date.

In the United States, Play Meter's 1987 index points to an August 1987 product announcement for “Dark Mist / World Games.” The surviving World Games manual and U.S. flyer establish that this was not merely a stray import. World Games distributed Dark Mist under Taito America license as a conversion product.

Physical release: board in Japan, conversion kit in America

The Japanese physical-release evidence is unusually useful because it helps explain why Darkmist is so hard to recognize today. Game Machine's February 1, 1987 article describes the game as a PCB offering and gives an operator price of ¥138,000. The March 15 product summary again describes board-only sales at roughly the same price point. The important historical point is not a one-thousand-yen OCR ambiguity in later machine transcription; it is that the Japanese product was being sold as a board, not presented in the surviving trade evidence as a distinctive dedicated cabinet line.

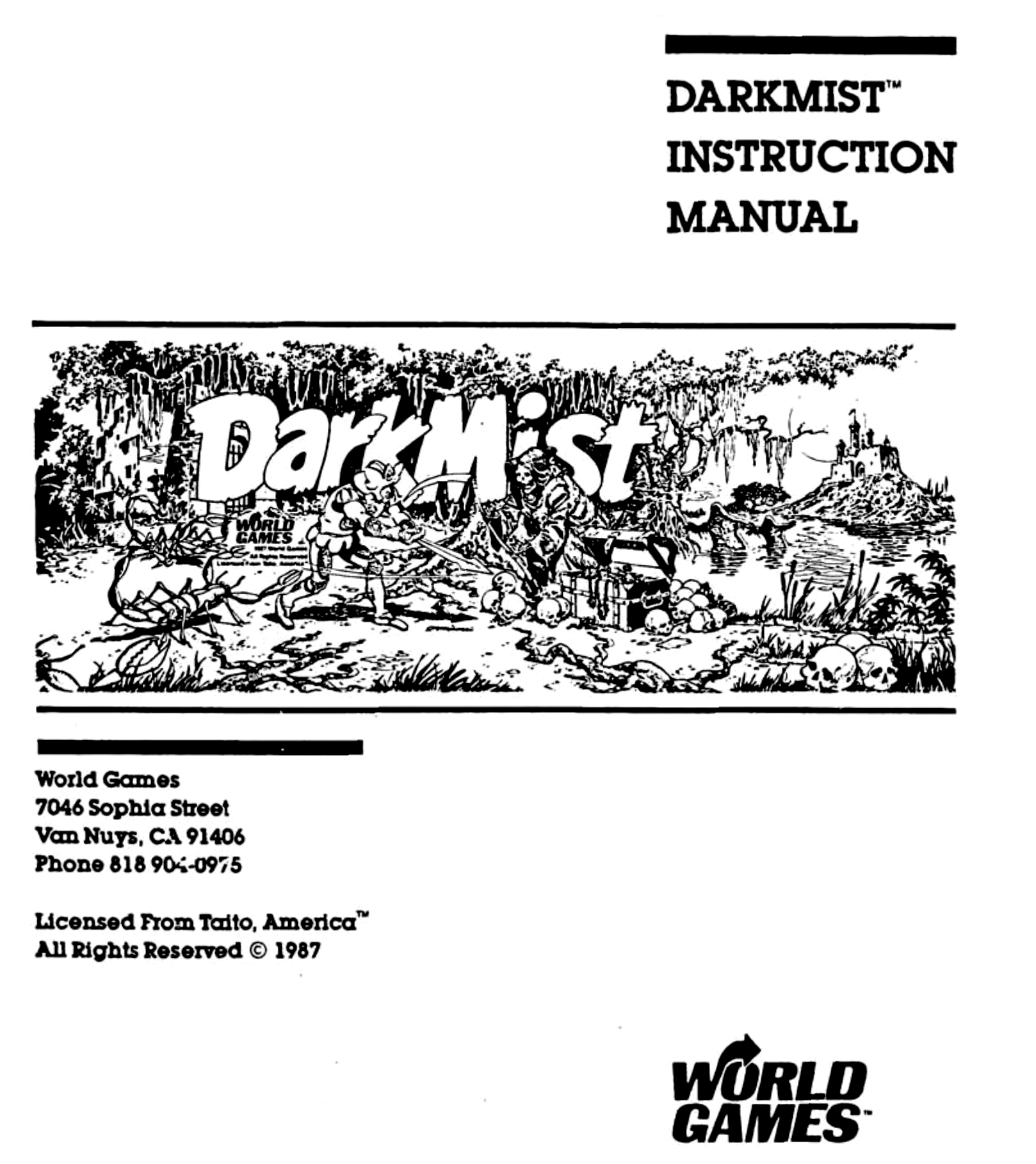

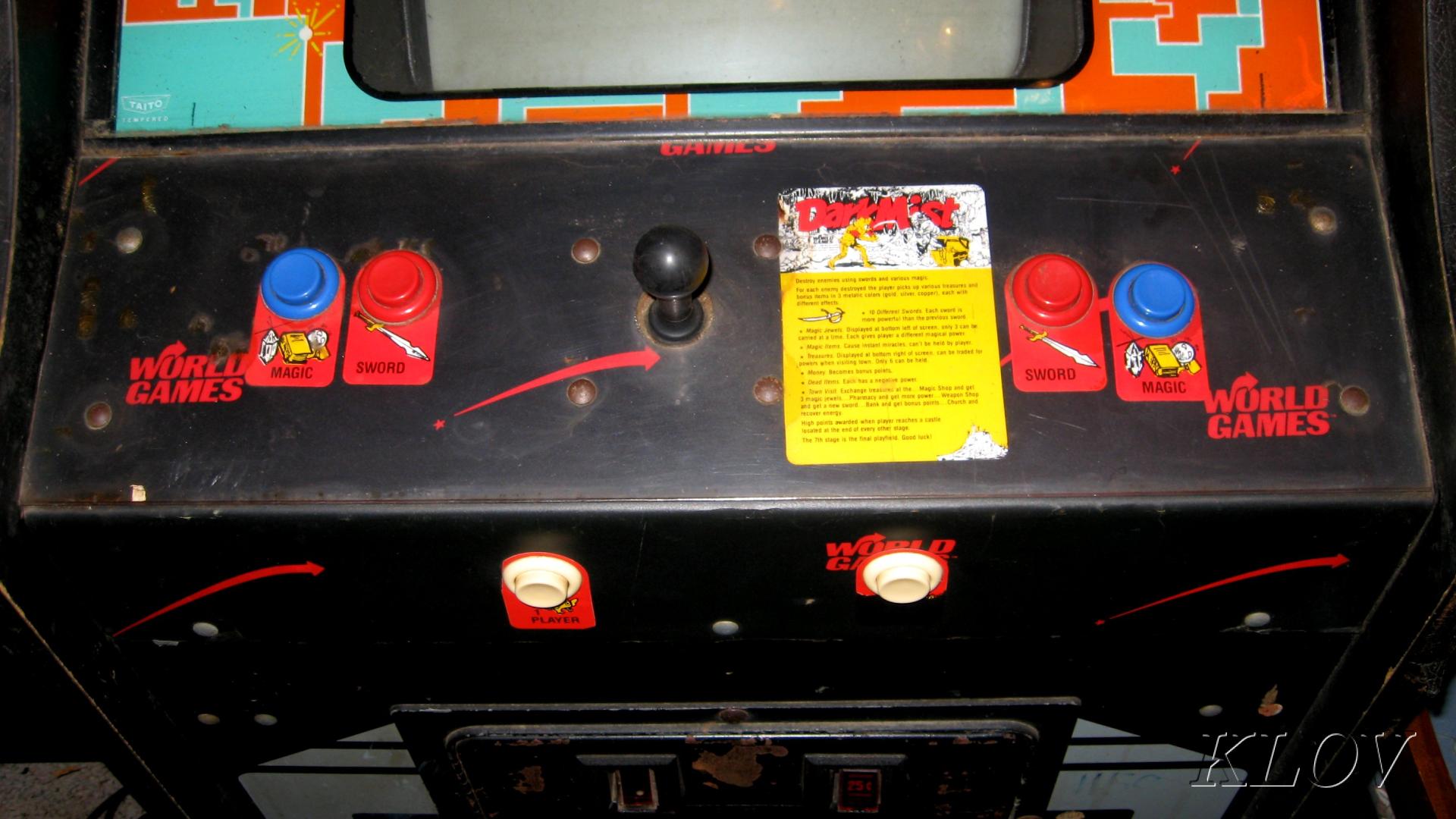

The U.S. story is even clearer. World Games' surviving instruction manual is explicitly structured around converting an existing video cabinet. It tells the operator to remove existing game components and install the new board, wiring, controls and artwork. Research notes from inspection of that manual record kit material including the PCB, harness, control-panel treatment/Lexan, joystick, buttons, marquee, mounting material and instructions. The U.S. flyer is likewise conversion-oriented.

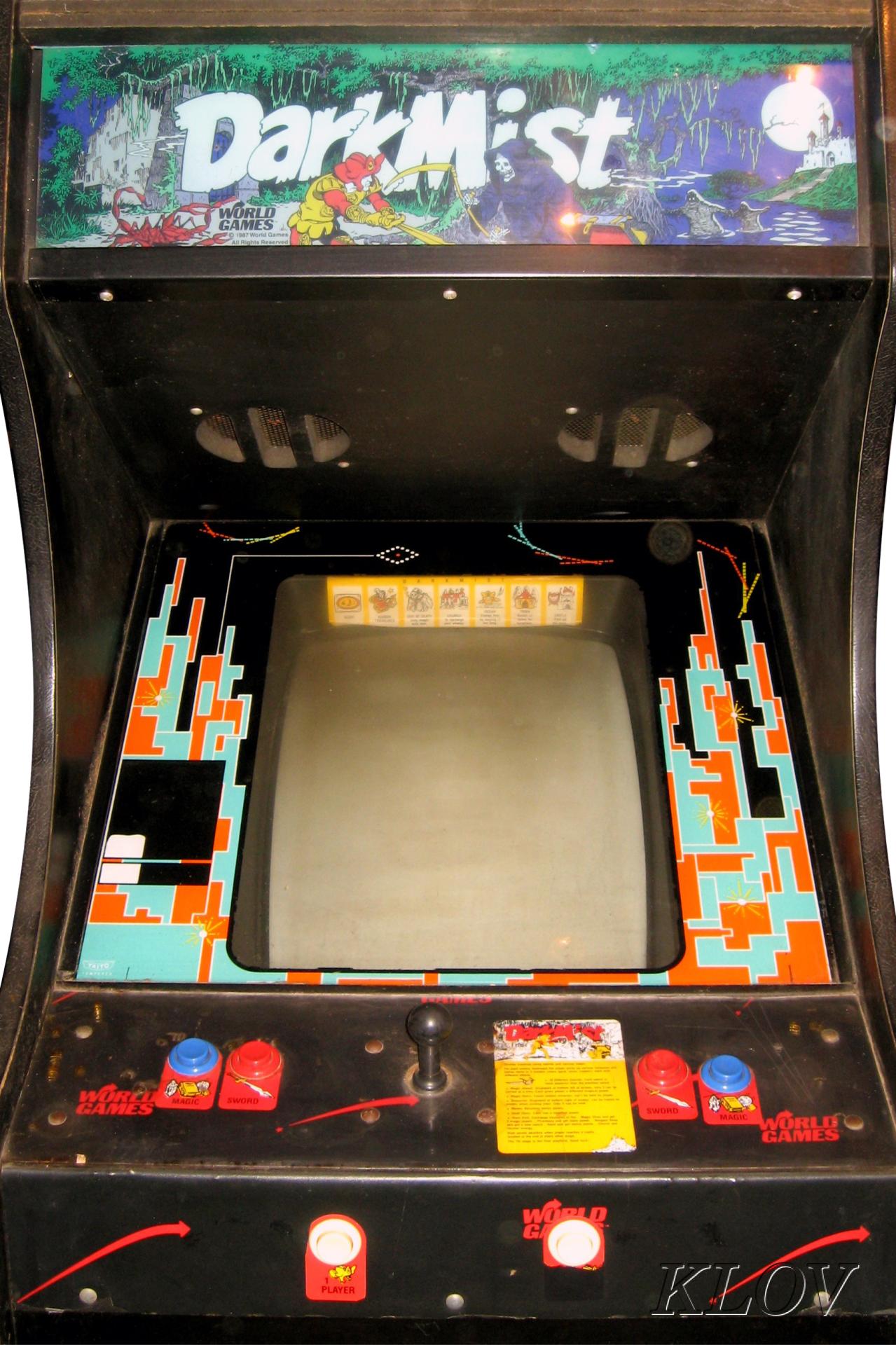

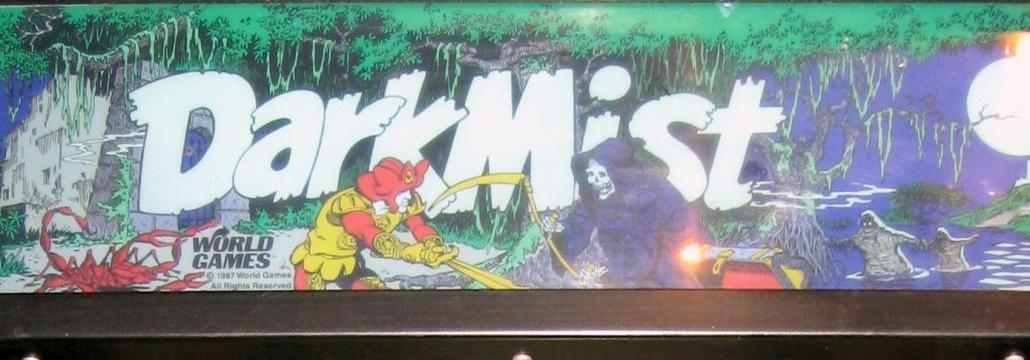

This means surviving Darkmist cabinets require careful language. A cabinet with a Darkmist marquee and control panel may be a genuine period conversion, but it should not automatically be called a “factory dedicated Darkmist cabinet.” No reliable evidence reviewed in this project established a standardized dedicated production cabinet. The photograph below shows a surviving conversion-style cabinet; it is not proof of a factory-dedicated model.

This board/kit history is a strong explanatory factor in the game's modern invisibility. A famous dedicated cabinet can survive in photographs and collections even when the game itself becomes obscure. A board sold into generic or previously occupied cabinets can disappear with its operator conversion.

Survivor records consulted for this research were weighted toward loose boards and conversions rather than complete machines. VAPS is a changing, self-reported census, so it cannot supply a permanent production or rarity total.

Hardware and technical profile

The MAME source examined for this profile source is unusually informative about Darkmist's hardware. It identifies:

• Main CPU: Z80, configured at approximately 4 MHz in current emulation, with the source itself retaining a question mark on the clock comment.
• Sound CPU/device: T5182, a custom CPU used in a Seibu-like sound system with internal code and an external program ROM.
• Sound: YM2151 at approximately 3.579545 MHz, mono output.
• Display: 256 × 256 total raster setup with a 256 × 224 visible area, 60 Hz, vertical orientation in arcade use.
• Input: eight-way joystick and two action buttons per player, corresponding to sword and magic.
• Cocktail support exists as a configuration concept, but the examined MAME source still carries cocktail-mode work as a TODO/preliminary area.

The MAME driver comments call attention to the SEI8608B sound board, which carries the T5182 custom CPU and YM2151. Intriguingly, the physical sound board also has unpopulated locations for a SN76489-family sound chip, two MSM5205 ADPCM devices, two 27512 EPROMs and support logic. Those empty positions suggest the board design anticipated additional sound hardware or a broader family configuration, although Darkmist itself does not populate/use those parts in the documented set.

A surviving PCB repair log provides useful real-hardware context. The technician removed the smaller sound daughterboard, repaired a ROM connection issue that caused jailbar graphics, replaced a bad palette RAM chip, and dealt with a damaged speaker edge-connector pad. The repairer's observations about PROMs, palette RAM and the separate sound board align well with what MAME documents. The JAMMArcade repair log is linked below for its real-board photographs and service account.

A Taito board cross-reference lists M6100213A for Darkmist and identifies it as a 1986 Seibu board. A separate PCB-identification reference associates Darkmist with the SEI-8608 family notation. These numbers should be treated as complementary board-identification evidence rather than assumed to be the same numbering system.

The the examined MAME source ROM definition contains 17 numbered game ROM files plus color/lookup PROM data. Summing the regions defined in the current driver gives roughly 673,280 bytes (657.5 KiB) of dumped ROM/PROM/map data. That number is useful only as preservation trivia; it should not be described as “program size,” because it includes graphics, maps, sound data and PROMs in addition to executable code.

Controls and the first impression

Darkmist starts in familiar territory. The player controls a warrior in golden armor from above. The environment scrolls vertically and the player can move in eight directions within the available screen space. Button 1 attacks with the sword. Button 2 uses magic.

The sword is directional and short-ranged. One useful behavior confirmed in gameplay research is that the blade can cancel at least some incoming enemy projectiles. Magic provides range and special effects and is essential against certain enemies. The Mikado researchers repeatedly note that the Grim Reaper-like enemy cannot simply be handled with the sword and should be attacked with magic.

A yellow energy gauge represents health. Damage does not immediately remove a life, which can make Darkmist seem generous during the opening seconds. That impression does not last. Enemy collisions, projectiles, terrain and bad item decisions can rapidly drain the meter. The player also carries remaining-life icons in the status area.

One reason the game is easily misread is visual language. Its first outdoor scene resembles an overhead scrolling combat game. Western period coverage made comparisons to Commando-style action; modern descriptions sometimes call it a shooter. Yet the status strip, equipment, towns, dungeon transitions and resource decisions belong to a more complicated design tradition. Japanese Mikado hosts repeatedly call it an action RPG, and that description is useful when understood as a description of its interlocking systems rather than a strict genre label.

Story: what the original material actually supports

The original material does not support a princess-rescue story.

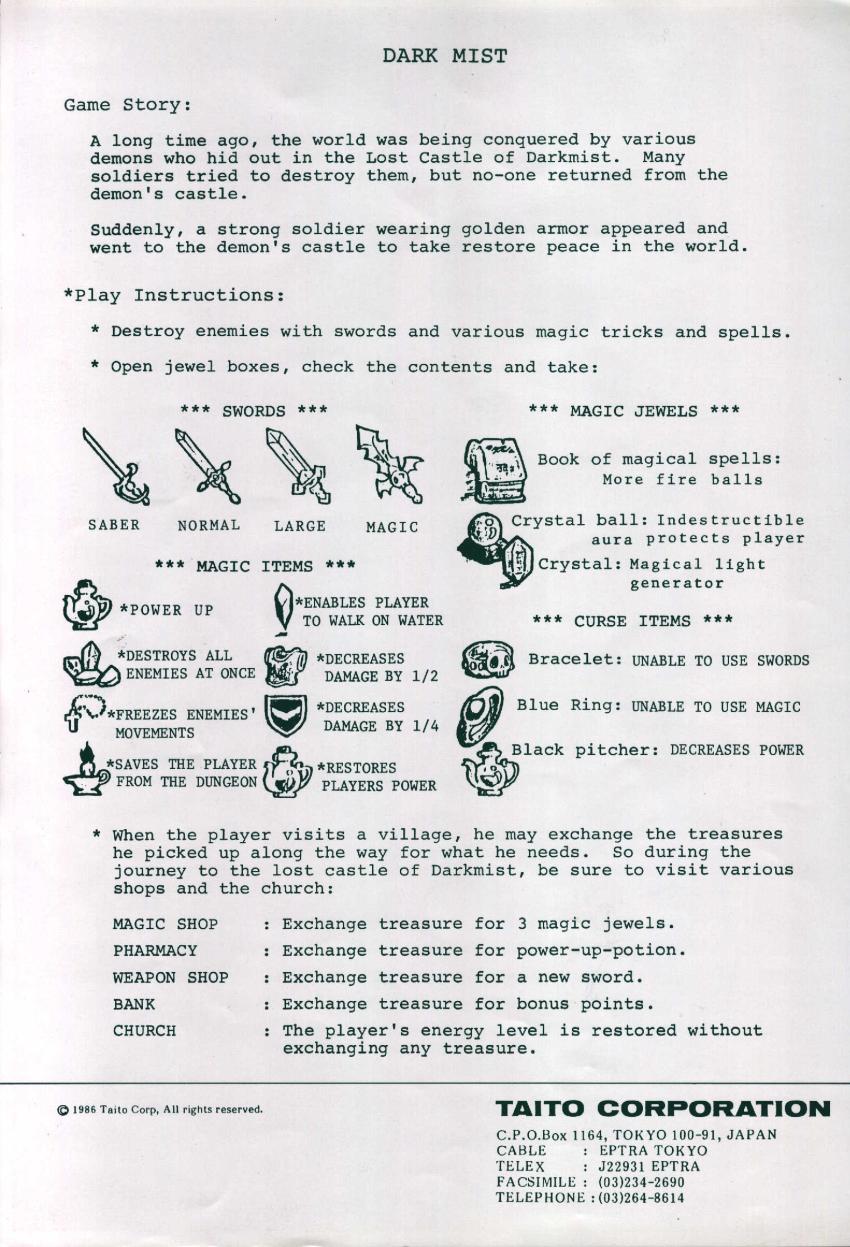

The surviving English Taito flyer describes a world being conquered by demons from the Lost Castle of Darkmist. Soldiers have tried to oppose them and have not returned. A powerful warrior in golden armor appears and heads toward the castle to restore peace. Japanese instruction material uses similarly compact heroic language, roughly calling on a legendary warrior to awaken from beyond the ancient past and defeat enemies with sword and magic.

The player character's exact cultural identity should also be handled cautiously. Some later secondary sources describe him as a samurai or eastern swordsman; English period material is more generic, using warrior/soldier imagery. The surviving primary material does not securely identify him as a samurai.

There is no extensive narrative progression. The game does not build a large cast or deliver a conventional ending. The “story” is primarily the journey through the landscape and castles.

Treasure chests: the central design trick

Treasure is the heart of Darkmist's mechanical identity. Enemies often leave treasure chests, but a chest is not an automatic reward. The player touches the chest once to open it and reveal the contents, then touches it again to actually take the item. The Japanese instruction card explicitly tells the player to open the chest, check what is inside, and then take it.

That two-step process exists because some items are harmful.

This is one of the strongest examples of Darkmist's knowledge-driven design. The player is not only expected to fight efficiently but to recognize tiny item graphics quickly under scrolling pressure. A new player sees “treasure” and thinks “collect.” An experienced player sees a decision.

The forced scroll makes the choice more interesting. A chest or revealed pickup can be lost behind the bottom of the screen. Waiting too long may cost the item, but touching it without recognition can impose a curse. The game turns a common arcade reward mechanism into a risk-management problem.

Sword system and terminology

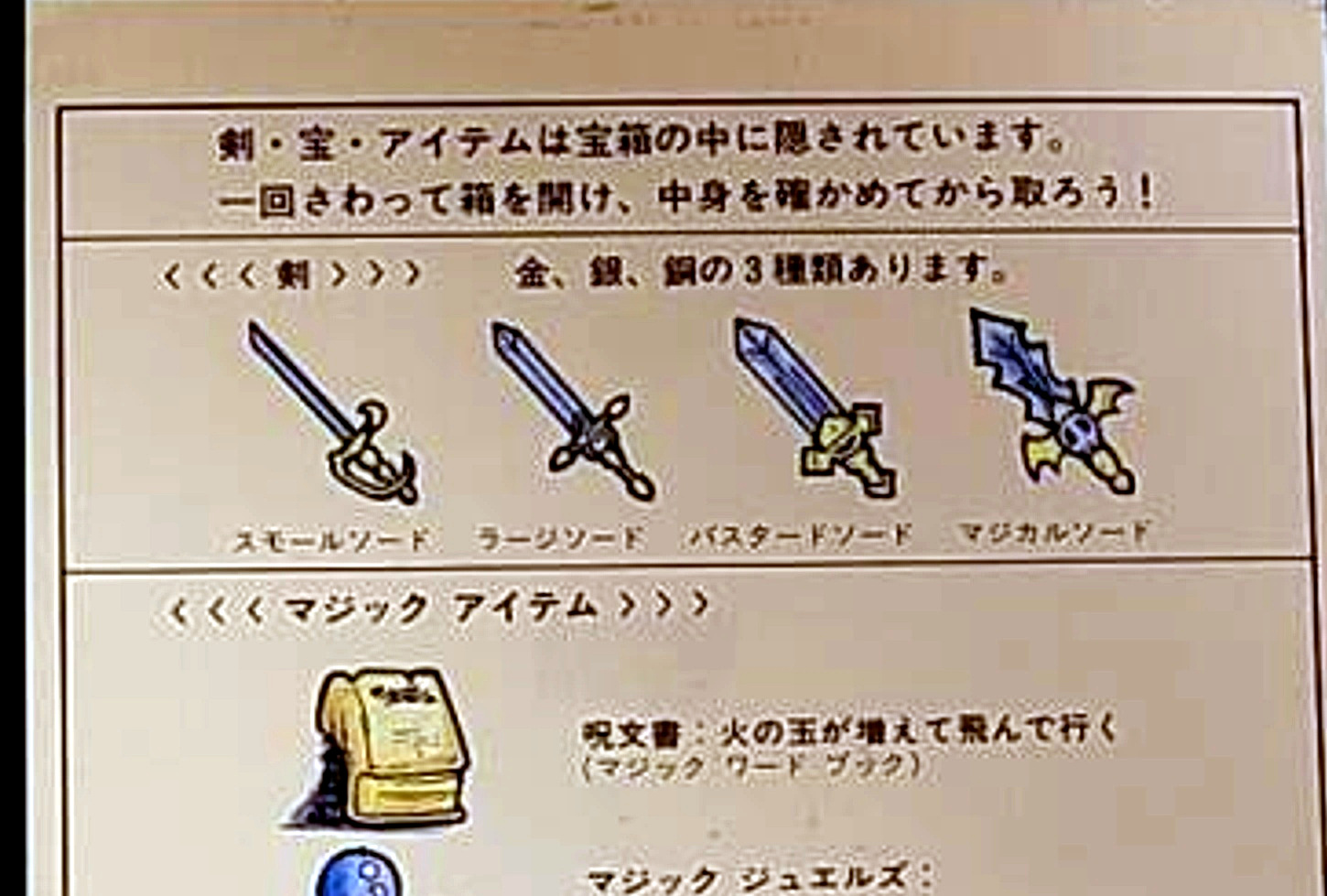

The Japanese instruction card identifies four sword classes:

1. Small Sword
2. Large Sword
3. Bastard Sword
4. Magical Sword

The same material indicates gold, silver and copper variations, producing what the Mikado researchers describe as effectively twelve sword variants across class and material/grade combinations.

The English Taito material uses a different four-name sequence: Saber, Normal, Large, Magic. This is a localization/terminology difference worth preserving rather than smoothing away. The two surviving operator materials use different names; the Japanese instruction-card translation below keeps that distinction visible.

Towns also contain a weapon service/weapon shop where treasure can be traded for a sword upgrade. This makes weapon strength both a field-pickup system and an economic progression system.

Magic and special items

The instruction material and Mikado play sessions together reveal a surprisingly elaborate support-item layer.

Magic Word Book / Spellbook

The instruction material associates the book with increasing fireball output. During play, magic is represented in the lower status area and stronger stored magic can be consumed as attacks/effects.

Magic Jewels / Color Crystals

The original material links colored crystals/jewels to special magical effects. Surviving English descriptions indicate effects such as additional fireballs, magical light and barrier-like protection. The exact mapping of every color to every effect remains unresolved.

Potion / Healing

Positive healing or power-restoration items replenish energy. The terminology is not perfectly consistent across translations and secondary discussion, and the illustrated Japanese and English artifacts are useful for comparing individual icons.

Heat Mail

Mikado's instruction-based explanation says Heat Mail reduces received damage to one-half.

Shield

The Shield is stronger, reducing damage to roughly one-quarter. Mikado repeatedly emphasizes how valuable the Shield is for survival.

Flying Stone

The Flying Stone allows the warrior to cross water without taking the normal terrain damage. This is crucial because some water routes are mandatory or effectively unavoidable.

Cross

The Cross freezes enemy movement temporarily.

Crack Stone / screen-clearing item

The original item material includes a stone/item whose effect clears or destroys enemies on the screen.

Candle

The Candle provides a dungeon-escape function. During research, this item was initially treated as a possible undocumented “lamp” because the Mikado players themselves joked about its resemblance to a Dragon Quest escape spell. A closer reading of the Japanese instruction material corrected that interpretation: it is documented as the Candle. The original card resolves the earlier “secret lamp” interpretation.

Equipment overwrite behavior

One of Darkmist's nastiest rules is that the special-equipment position does not simply accumulate every benefit. New pickups can overwrite existing equipment. A strong defensive setup can disappear because the player grabbed a new special item. Worse, a cursed pickup can take that slot. This is why “collect everything” is actively bad strategy.

Cursed items

The Japanese/English instructional material identifies three important bad pickups:

Death Arm Ring

Temporarily disables use of the sword.

Blue Ring

Temporarily disables magic.

Black Potion / Black Pitcher

Drains energy. Japanese material calls it Black Potion; the surviving English Taito sheet uses a different English label that has been read as “Black pitcher.” The names differ between the surviving language versions.

These curses explain the chest-inspection mechanic. The game expects players to memorize the visual identities of harmful items and physically avoid them after opening the chest.

Reading the Japanese instruction cards

These are research translations of the surviving cards. Some small labels are soft; item terminology is cross-checked against Taito’s English sheet. The original artifacts remain intact.

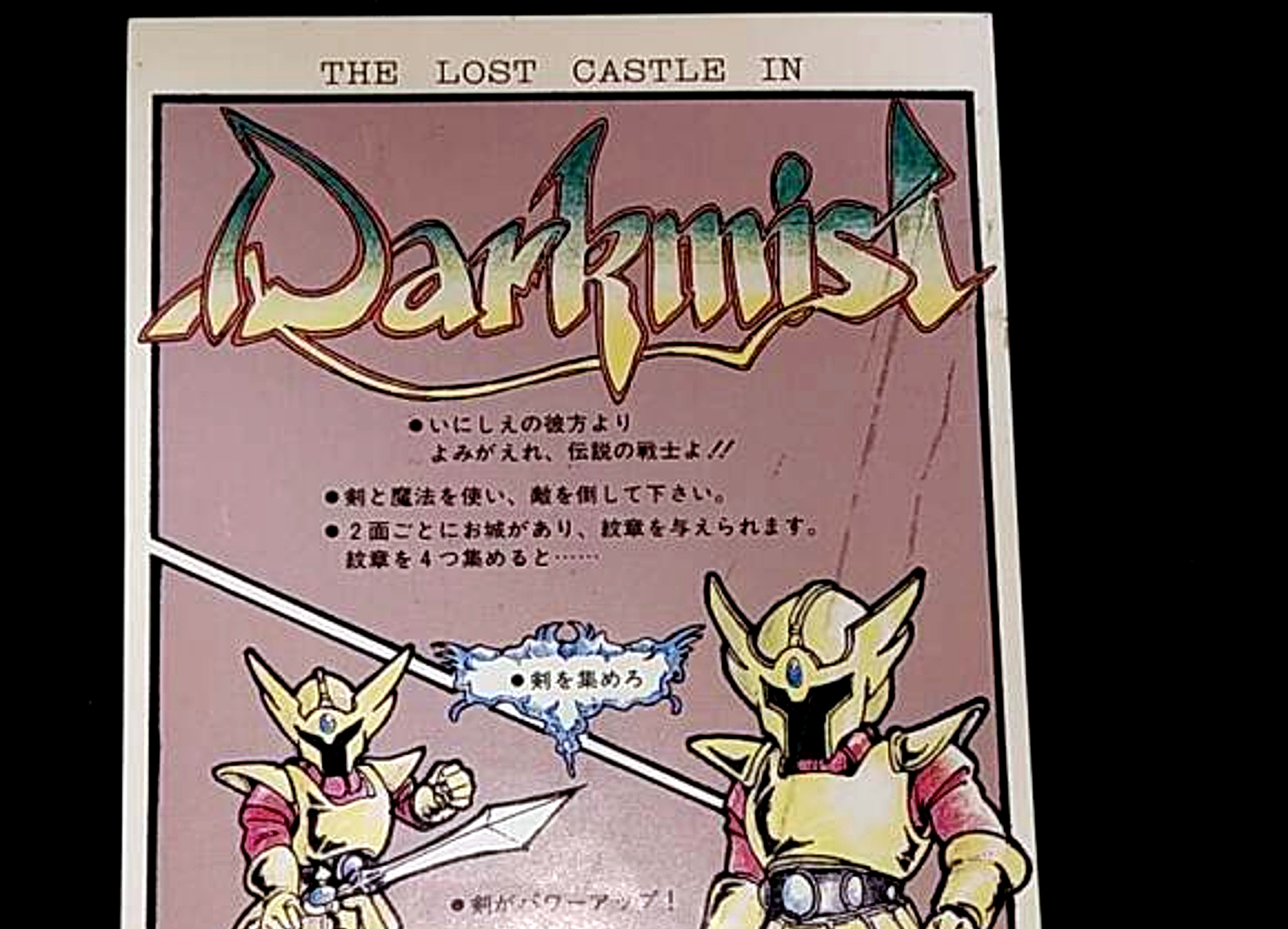

Front card: English translation

From beyond the ancient past, awaken, legendary warrior!

Use sword and magic to defeat the enemies.

Every two areas there is a castle, where you will be awarded an emblem. Collect four emblems and……

Collect the swords. Your sword powers up!

Use the items wisely to protect yourself!

The trailing dots are part of the card’s tease; they do not establish a conventional ending or a princess-rescue plot.

Treasure and swords

Swords, treasure and items are hidden inside treasure chests. Touch once to open a chest, check what is inside, then take it.

The Japanese card names Small, Large, Bastard and Magical swords, with gold, silver and copper grades. Taito’s English sheet instead names Saber, Normal, Large and Magic. These are language-version differences, not a confirmed one-to-one translation table.

The useful and cursed items are explained in the article’s item sections. The complete crystal color-to-effect mapping and damage values for all twelve sword combinations remain unresolved.

Enemies and why killing can be a mistake

Darkmist repeatedly violates another common arcade assumption: enemies are not always better dead.

Mud creatures divide into smaller enemies when attacked. The Mikado players deliberately avoid some of them because killing the large target can create a more dangerous crowd. Secondary descriptions add that some mud attacks can themselves produce smaller creatures; that detail is plausible and visually consistent but should be phrased with slightly more caution than the directly observed splitting behavior.

Skeleton-type enemies can also split into smaller versions. Scorpions and bird-like threats create similar crowd-management problems in some scenes. Mikado's practical conclusion is simple: the points or possible treasure from a kill may not be worth the health lost managing the aftermath.

The Grim Reaper-like enemy deserves separate mention because sword attacks are ineffective; magic is the reliable answer. This makes magic-resource management a survival issue rather than merely a weapon preference.

A giant snake is encountered as a boss/miniboss in casual footage. A cyclops-like enemy, lizard-man/knight enemies, boomerang users, black skeletons and other fantasy monsters appear across the run. Because surviving sources do not always give official names, those visual descriptions are not presented here as official enemy names.

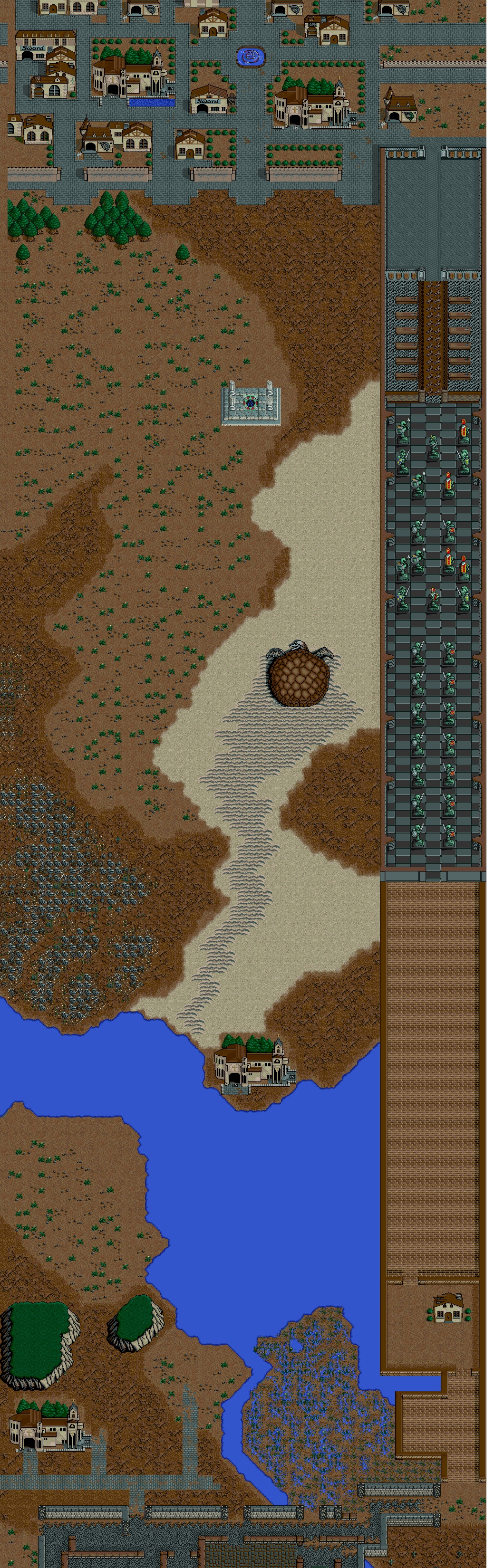

Terrain and forced-scroll danger

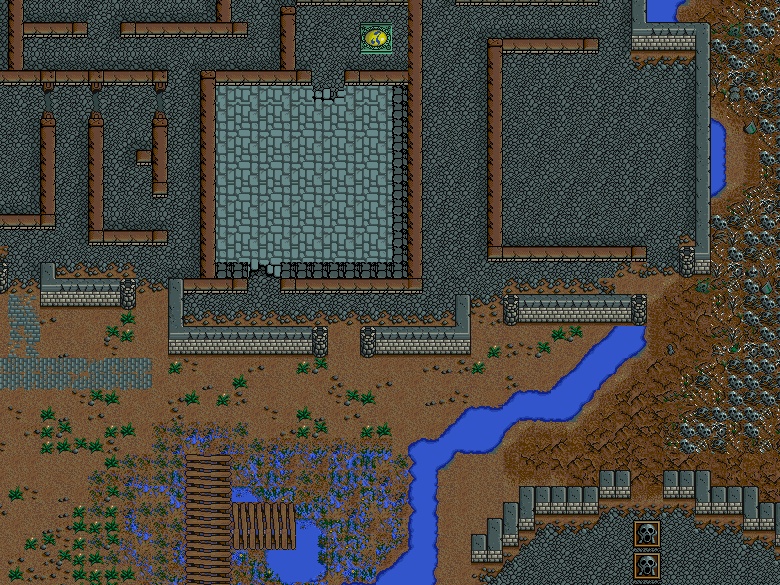

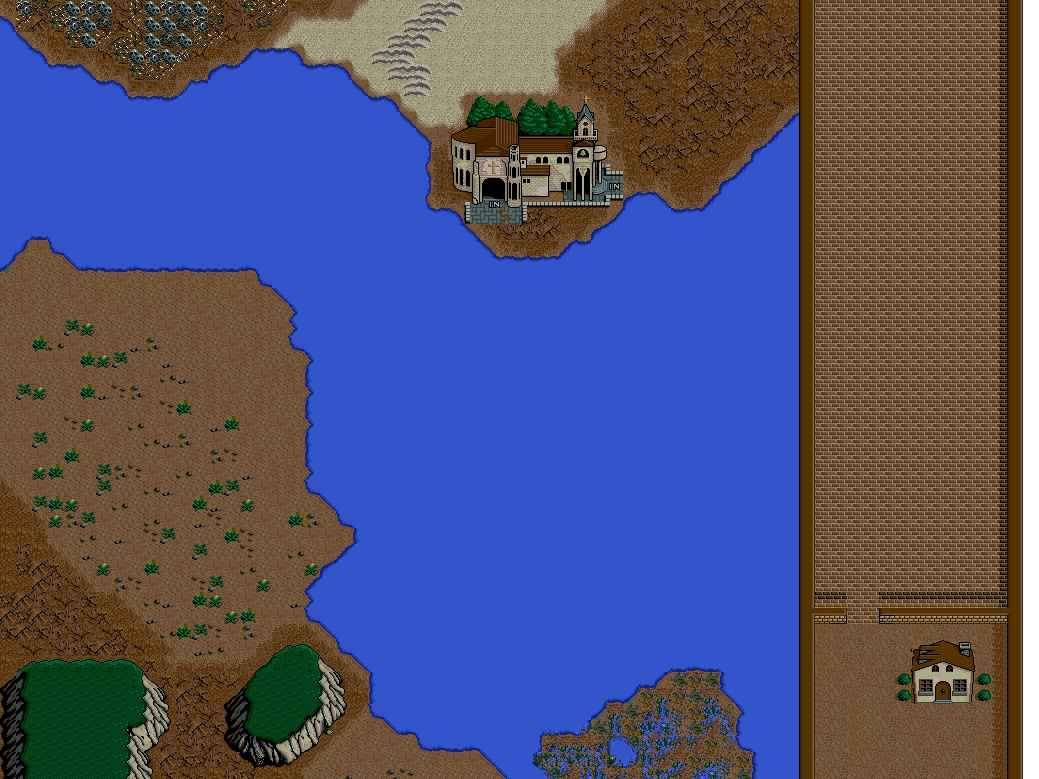

Water and swamp terrain steadily consume energy. The hazard can be reduced or eliminated with the appropriate traversal item, particularly the Flying Stone. The Mikado streams repeatedly show the player crossing dangerous water while watching health disappear, and they treat item acquisition before these routes as an important strategic variable.

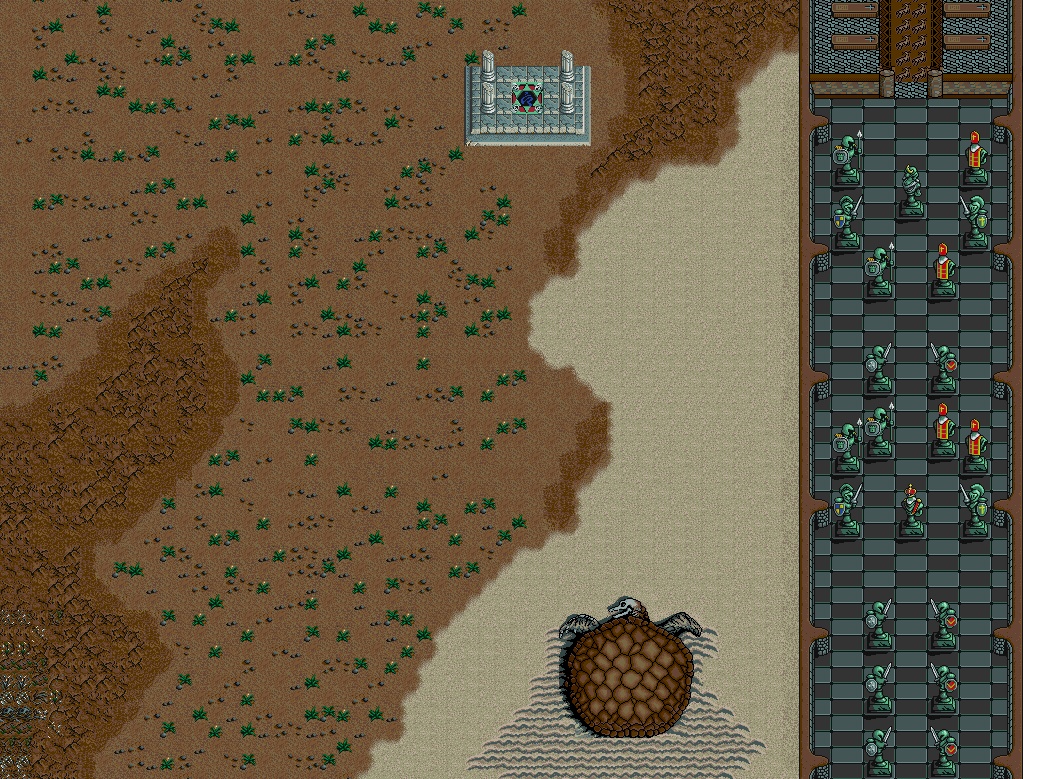

The forced vertical scroll introduces another hazard: geometry itself can kill. A player who enters the wrong indentation or dead-end route can become trapped as the screen continues to advance. Mikado explicitly demonstrates and discusses a cul-de-sac where the character can be crushed/left behind by scrolling. A separate first-impressions video also shows a player dying after moving into a church/area and failing to keep up with the moving screen.

This is a strong “Hints from the Arcade” point: route knowledge includes knowing which apparently open spaces are traps.

Duel encounters and timed combat gates

Outdoor travel is periodically interrupted by what the Mikado hosts call Duel Mode encounters: the scroll stops or progression is gated while a stronger group or miniboss encounter must be resolved. The hosts compare these to midboss battles and note that a timer is involved. Their live discussion says that running out of time can kill the player, although they had not exhaustively tested every timing edge case.

These encounters serve as pacing breaks and progression flags. They also prevent a pure “run away from everything” strategy; Darkmist lets the player skip many bad fights, but not all of them.

Towns, barter and services

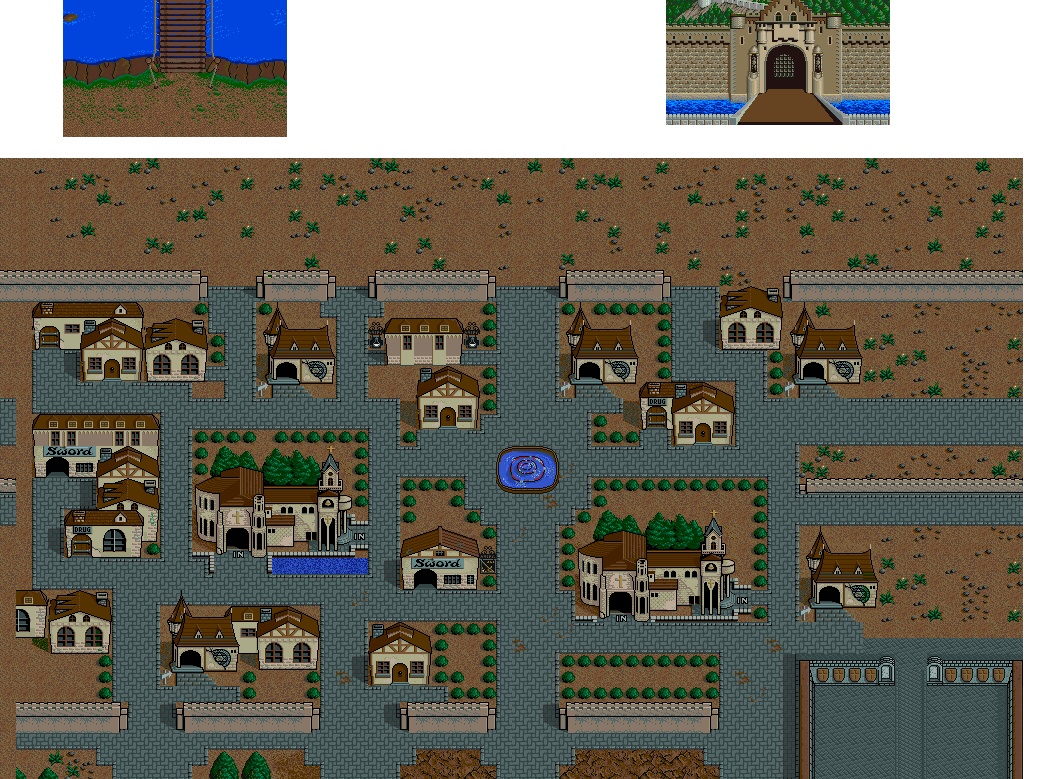

Towns are the strongest evidence that Darkmist is doing more than dressing a shooter in fantasy graphics.

The player does not simply collect a conventional gold total. Treasure objects function as barter/value objects. Mikado identifies crowns, rings and other treasures, with metal/value variations that matter particularly when converting treasure to score. Because treasure drops appear to vary, arriving at town does not guarantee the same purchasing power every run.

Original English material identifies several services:

• Magic Shop — exchanges treasure for magic jewels.
• Pharmacy / Drug shop — exchanges treasure for a potion/recovery item.
• Weapon Shop — exchanges treasure for a better sword.
• Bank / Market — converts treasure into bonus points.
• Church — restores energy without requiring the same treasure payment.

Mikado's January 2023 run makes the economy tangible. Early in the game they reach a town but have collected little or no suitable treasure and therefore cannot buy the upgrades they wanted. Later, a treasure-rich visit feels completely different. The same town can be a powerful recovery point or nearly useless depending on earlier drops and combat choices.

This variance is central to the game's difficulty. The researchers repeatedly describe item drops as apparently random and even wonder whether a stable “power-on pattern” might exist. They do not solve that question. The Mikado researchers observed varying/random-looking drops; the underlying random-number rules have not been established.

Churches are strategically important because they can restore health repeatedly in some contexts, making their locations part of route planning rather than scenery.

Dungeons and maze navigation

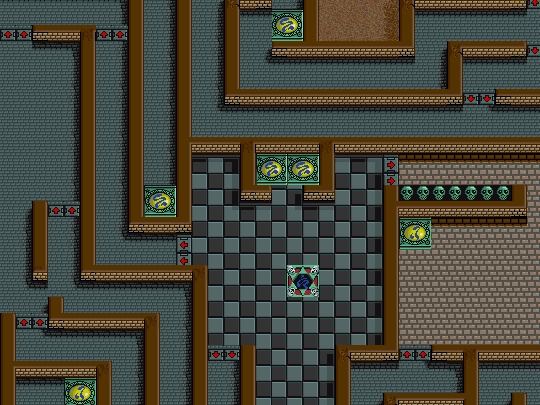

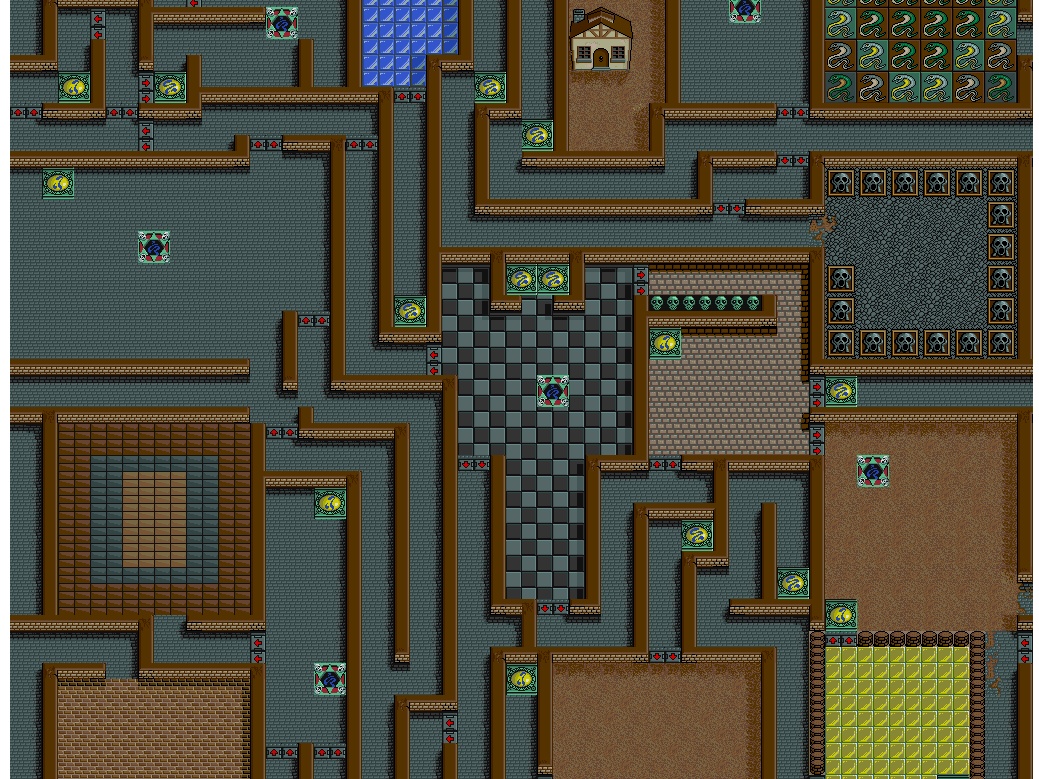

Indoor/dungeon sections change the control rhythm dramatically. Instead of an outdoor forced scroll, the player navigates a more freely scrolling maze-like environment with doors, passages and transitions.

Arrows mark one-way routes. Entering one of these routes can commit the player to a direction. Some areas look similar enough to disorient a player, and the Mikado researchers repeatedly find themselves reasoning about whether they have returned to the same location or entered a parallel-looking section.

Teleporter-like emblems/pads move the player between areas or into underground sections. Some exits and route connections are not obvious. The Candle can remove the navigation problem entirely by taking the player toward/out of the dungeon.

The January stream also captures the excitement of finding a route to an isolated building they had seen but could not initially reach. Inside, the game provides what appears to be a small equipment-related hint. This modest event is valuable historically because it demonstrates that Darkmist contains adventure-game-style curiosity rewards, not merely combat rooms.

Structure: four stages, seven scenes

Darkmist’s stages and scenes require a careful distinction.

Later sources often call Darkmist a seven-level game. During the Mikado investigation, the hosts themselves reason aloud about areas and briefly describe the structure in ways that could be read as eight subareas. Contemporary Japanese Game Machine coverage is more precise. The February 1, 1987 article states that there are seven scenes, generally two scenes per stage, with the final stage consisting of a single scene. Together, the records support:

Four stages comprising seven scenes.

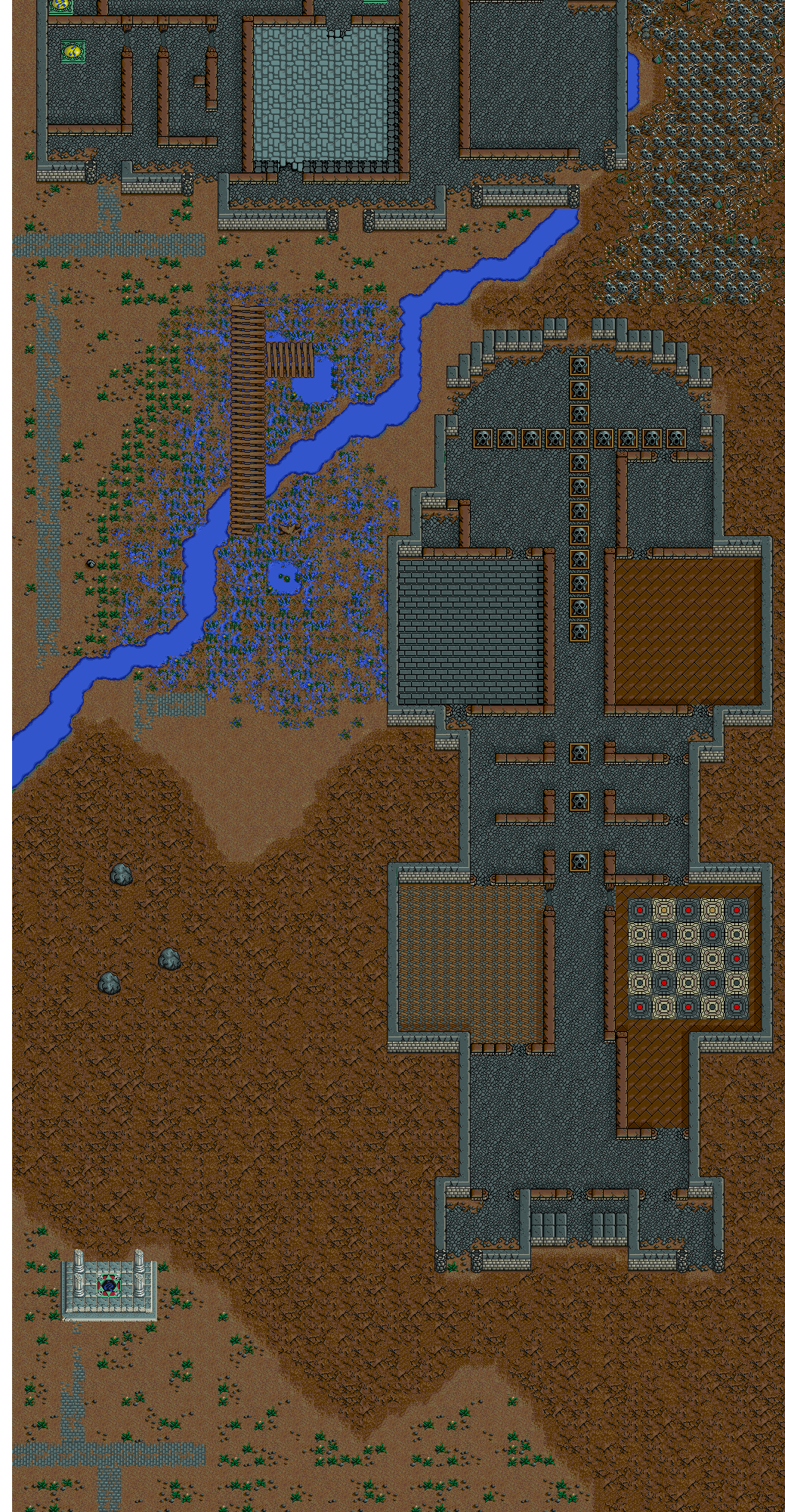

The game marks major progress through castles and emblems. The Japanese instruction card says that a castle appears after every two areas and that an emblem is awarded; the player is told to collect four emblems, with the payoff teasingly left as an ellipsis.

Mikado's full run independently confirms four major stage clears and the eventual loop, even though the live hosts are still working out the precise terminology while playing.

The ending that barely exists

Darkmist's ending is one of its most memorable anti-climaxes.

During the January 2023 Mikado broadcast, the players eventually reach the final sequence at about 1:06:37. They celebrate the one-loop clear and wait for a normal arcade ending or staff roll. None arrives. The game returns to the opening stage and begins again.

The hosts explicitly remark that there is no conventional ending presentation. They also do not notice an obvious immediate difficulty increase on the second loop. A World of Longplays recording independently describes the game as effectively endless and says the player deliberately dies after completing it once.

This is strong enough to state as confirmed gameplay behavior: a full clear loops back to Stage 1 with essentially no traditional ending sequence.

That outcome also explains why the four-emblem instruction-card tease feels so strange in retrospect. The game builds a journey around castles, towns and progression, then refuses the player a narrative payoff. Its logic remains arcade logic: clear, loop, score, survive longer.

Death, checkpoints, continues and recovery

Darkmist is especially cruel after a mistake because dying can remove more than health.

The Mikado players observe that death strips away accumulated equipment/items. Restart points can be significantly earlier than the place of death. That combination creates “recovery” situations in which the player is asked to repeat a dangerous route with weaker equipment than they had when first reaching it.

Their December 2022 session demonstrates how a continue can put the player into a discouraging loop: they restart behind a difficult section, with score reset and a poor equipment state, then have to fight back through hazards.

The January session adds another important observation. The researchers believe that after continuing, score-based extra lives no longer behave as they do on the original credit; one participant states that after continuing the life increases do not return. They also note that emblem progress has to be rebuilt after a continue. These are strong live-play observations, but because the transcript is partly automatic and the team is still investigating, these continue rules are Mikado-observed, not fully reverse-engineered or independently verified.

Checkpoint placement is also inconsistent enough to produce odd enemy behavior. The researchers note at least one area where enemies appear on a recovery/restart route but do not appear when the area is reached without dying, leading them to suspect a flag-management bug. The suspected flag-management fault remains an observation rather than a confirmed code-level diagnosis.

DIP settings and the “how hard was it in 1987?” problem

Difficulty settings became a research question because the Mikado team initially played a board configured much more harshly than they believed the documentation intended.

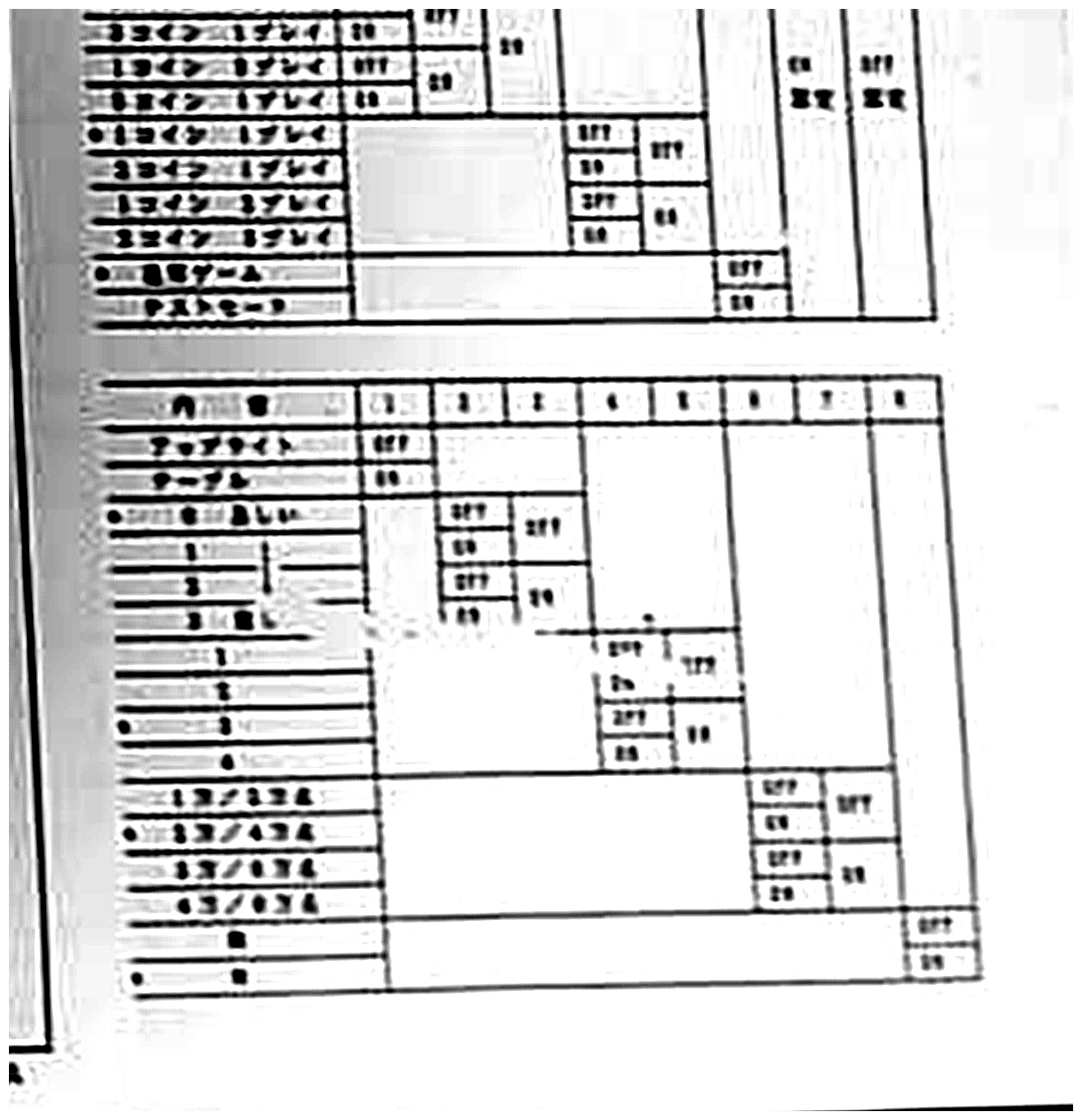

For their January 2023 session they obtained a DIP-switch chart and changed the board to what they described as a documented factory/default-style configuration from the DIP chart they had obtained. Their interpretation was:

• 3 starting lives
• first score extend at 20,000
• second score extend at 40,000
• no further score extends
• Easy selected as the default/expected difficulty in their working setup

They contrast this with the earlier configuration of one starting life and lower score thresholds.

The MAME source examined for this profile exposes four difficulty levels (Easy, Normal, Hard, Hardest), one to four starting lives, and bonus-life choices of 10K/20K, 20K/40K, 30K/60K and 40K/80K. The MAME source examined for this profile's default definitions are Easy, 1 life, 20K/40K. That is not identical to the Mikado period-document setting.

The two sources describe different starting-life settings:

The Mikado research group, using a DIP chart they identified as period/factory documentation, configured their board for three starting lives and score extends at 20,000 and 40,000. The MAME source examined for this profile defaults to one starting life while retaining Easy and 20K/40K. MAME defaults should not automatically be treated as historical factory settings.

This is a good example of why operator configuration can distort retrospective difficulty memories. Mikado speculates that some boards may have been operated with switches left in generic/all-off states rather than carefully configured to the documentation. That is a hypothesis, not proven distribution history, and should remain labeled as such.

Why Darkmist feels unfair

The game's reputation for extreme difficulty makes more sense once its separate systems are considered together.

A new player can lose because:

• they collect a cursed item without recognizing it;
• they replace useful armor with a less useful special item;
• they spend magic before meeting a magic-dependent enemy;
• they kill a splitting monster and create a crowd;
• they cross water or swamp without protection;
• they enter a one-way dungeon branch without knowing the route;
• they get caught in an outdoor dead end while the screen advances;
• they die late in a section and restart much farther back without equipment;
• random-looking treasure drops leave them unable to buy the recovery or upgrade they expected in town.

None of those individually is extraordinary. Together they create a game that assumes accumulated knowledge. The first credit is not simply testing reactions; it is charging the player to learn the rules.

The recurring pattern is clear: Darkmist is difficult because it punishes incomplete knowledge, not merely because enemies are strong.

The practical strategy that emerges is almost the opposite of the usual arcade instinct. Do not kill everything. Do not collect everything. Do not treat every branch as harmless exploration. Learn the route, preserve defense, recognize curses, keep magic for specific threats, and use town services deliberately.

Contemporary reception

Period English-language coverage is thin, which is itself useful historical evidence.

An April 1987 arcade feature in the CRASH/ZZAP! publishing orbit covered The Castle in Darkmist alongside much better-known contemporary arcade games. The review recognized the game's combination of Commando-like scrolling action and Gauntlet-like maze/adventure behavior. It discussed splitting mud monsters, towns/castles, directional routes/teleport behavior and the hybrid structure. The reviewers were not especially enthusiastic, criticizing the pace and sense of déjà vu and suggesting the game did not hold attention for long.

That is one contemporary reaction, not a universal verdict. With hindsight, several things the period reviewer treated as awkwardness are the same things that make Darkmist historically interesting: the refusal to stay in one genre, the equipment burden, the switch between scrolling combat and maze navigation, and the unusual amount of knowledge expected from an arcade player.

A later index points to a Darkmist entry in Retro Gamer’s “Unconverted” feature. The article itself has not been verified for this profile; it remains a research lead.

Modern casual impressions are similarly divided. A short first-time video reviewed during research found the game competently made but not personally compelling, objecting particularly to the auto-scrolling overhead structure. That player independently demonstrates several mechanics, including mud splitting, a giant snake encounter, a Grim Reaper-like enemy, maze behavior and a death caused by falling behind the scrolling field. The commentary should not be treated as authority, but the footage is useful corroboration.

The thin paper trail

Darkmist's obscurity is not merely a lack of Google results; it has several overlapping historical causes that can be documented cautiously.

First, the game was sold in forms that do not naturally leave a famous cabinet silhouette. Japanese evidence points to PCB sales. U.S. evidence points to a conversion kit. Second, no major contemporary home conversion has been found. Games that migrated to NES, home computers or later compilations repeatedly reintroduced themselves to new players; Darkmist appears not to have had that advantage. Third, contemporary review coverage was sparse. Fourth, modern survivor data is weighted toward boards and conversions rather than complete machines.

A Japanese collector at Retro Game Goods preserved a Taito sample flyer accompanied by three original photographic prints. His personal recollection is striking: the game had been installed at his regular arcade, but he did not play it because it did not look especially appealing, and he remembers few or no other players using it. He finally watched the gameplay online years later. This is one eyewitness memory, not market data, but it is exactly the kind of small human fragment that helps explain how a released arcade game can evaporate from collective memory.

The Mikado researchers make the same point from another direction. In their December 2022 broadcast they repeatedly note how little strategy information they can find, and one participant recalls playing the machine in real time in 1986 at a bookstore-front arcade setup in Sumida, Tokyo. He remembers the game being replaced quickly and says that although it left an impression, he never really understood its systems at the time.

The fact that Mikado enthusiasts eventually formalized a Darkmist Research Group is almost the perfect epilogue. A game with towns, shops, hidden routes, multiple equipment layers and a looping four-stage journey survived into the internet era with so little practical knowledge attached to it that players had to reconstruct the game experimentally in public.

That is not evidence that Darkmist was objectively a commercial failure. It is evidence that its surviving cultural footprint is unusually thin.

The Mikado research project

The December 28, 2022 program is exploratory. The hosts introduce Darkmist as a 1986 Taito-distributed, Seibu-developed fantasy action game and openly say that they have been unable to find a one-credit clear video. One participant had played it during the original period but remembers little detail. They experiment with items, early towns, the first dungeon, water damage, continuing and restart behavior. The session ends with the sense that the game cannot be approached casually; map knowledge and configuration research are required.

The January 1, 2023 “All About Darkmist” program is much more systematic. The team explicitly says its immediate goal is to spend whatever credits are necessary to document a full loop, enemy placement, the map and items. Only after creating that baseline do they intend to work toward a one-credit clear. This makes the session unusually valuable as a preservation/research source.

Major findings from the January session include:

• The researchers obtain a DIP chart and reconfigure the board to their documented default/factory interpretation.
• They repeatedly observe changing treasure drops and treat the item system as random-looking.
• They confirm the two-stage chest interaction: open, inspect, then collect.
• They identify defensive items and cursed pickups and show how the equipment slot can be overwritten.
• They document barter-based town services rather than a conventional gold economy.
• They confirm water/swamp damage and safe traversal with a special item.
• They document one-way dungeon passages, route loops and the Candle/dungeon-exit function.
• They show multiple enemies that are better avoided because they split or create additional threats.
• They demonstrate the four-stage clear and immediate loop to Stage 1.
• They find no meaningful ending sequence and no obvious immediate second-loop difficulty increase.
• The complete exploratory clear takes roughly eight continues/credits by their own post-run count, underlining how far they still are from the intended one-credit goal.

The two Mikado broadcasts are linked in Sources & Further Reading below.

MAME and preservation history

Darkmist entered MAME remarkably late for a 1980s Taito-associated arcade title.

• MAME 0.96u3 (May 24, 2005): Darkmist was added but marked GAME_NOT_WORKING.
• MAME 0.103u4: Nicola Salmoria decrypted graphics for Darkmist and Panic Road.
• MAME 0.104u2 (February 16, 2006): The Lost Castle in Darkmist was promoted from NOT_WORKING to working status, credited in the release notes to Tomasz Slanina and Nicola Salmoria.
• Later MAME work continued. A 2015-era MAMEinfo note records a fix for missing sound effects/background music. A later MAME release note documents corrected interrupt vectors. The documented emulation status is broadly good, while cocktail mode remains preliminary/TODO territory.

This emulation history explains why Darkmist remained less accessible to emulator users than many better-known 1986 games until the mid-2000s.

The preservation story also intersects with the T5182 sound device and SEI8608B daughterboard. Emulator auditing can require the shared device ROM as well as the game-specific files; the game archive alone does not describe the complete sound subsystem.

Music

The technical sources examined here identify the YM2151 as the principal sound chip. A VGM preservation pack catalogs the soundtrack with cues for coin/start, main BGM, two labyrinth tracks, boss music, town music, castle discovery and name entry, plus several unused tracks. The composer remains unknown in that preservation source.

Arcade Italia/Arcade History notes that Darkmist music was later represented in the Legend of Game Music 2 – Platinum Box collection (2006), on the Taito disc. This is a useful indication that the soundtrack survived in later game-music preservation even though the game itself remained obscure.

No composer credit has been securely established.

The surviving artifacts

The English Taito flyer is unusually informative: its two sides preserve story framing, controls, swords, shops and harmful items. The Japanese instruction cards add terminology and the crucial direction to inspect an opened chest before collecting its contents. Their English translation is presented beside intact images below.

World Games’ flyer and operator manual document the American conversion release. The surviving cabinet and control-panel photographs show that physical context without proving a standardized dedicated cabinet. Game Machine’s period coverage anchors the Japanese board-sales chronology.

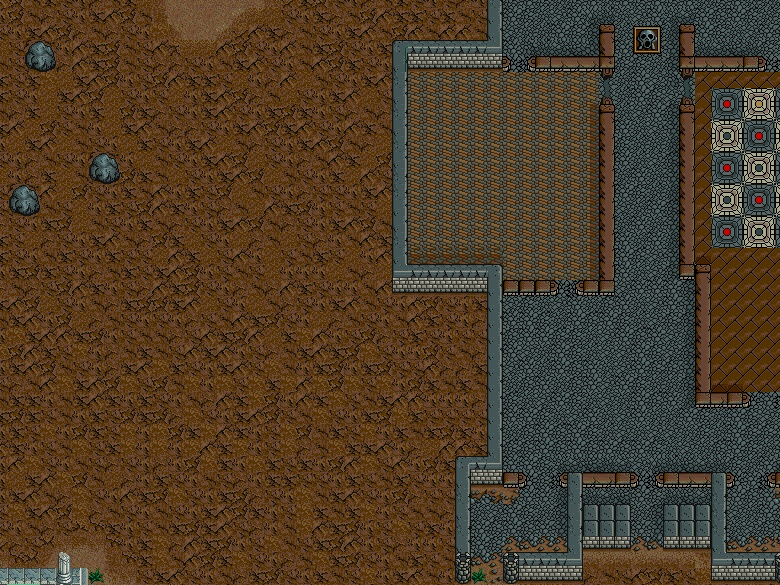

The route illustrations have a different origin. They are excerpts from a map assembled by George s and preserved at VGMaps, using authentic game graphics. They are modern research illustrations, not manufacturer-issued maps.

JAMMArcade’s repair log supplies further real-board and sound-daughterboard evidence. Retro Game Goods Collection preserves a sample flyer with three attached photographic prints that appear to be period promotional material. Those two sets of photographs are linked as further sources rather than represented here as locally held artifacts.

What makes Darkmist worth publishing

Darkmist belongs on Arcade Side B for more than rarity.

Mechanically, it represents a strange mid-1980s attempt to fuse several arcade traditions before those mixtures had standardized. It borrows the momentum and spatial pressure of a vertically scrolling action game, the equipment awareness of an RPG, the service economy of a miniature adventure, and maze navigation closer to contemporary computer or console fantasy games. It then applies arcade punishment to all of them.

Historically, its distribution left almost no iconic cabinet identity. Its lack of a major home conversion removed another route into memory. Its period reception was limited and not especially enthusiastic. Its emulation history arrived late. Its individual development credits remain opaque. Yet the surviving primary artifacts reveal a game with far more deliberate system design than its reputation suggests.

Rarity alone does not make Darkmist a forgotten masterpiece. Darkmist has real frustrations. Its route knowledge can feel punitive. Random-looking drops can sabotage planning. Continues can be miserable. The loop provides almost no payoff. Contemporary reviewers had legitimate reasons to find it slow or derivative.

The stronger story is this: Darkmist is an unusually ambitious, awkward and under-documented arcade hybrid whose real design becomes visible only after somebody does the work to learn it.

That is precisely what the Mikado researchers did, and what the surviving flyers, cards, maps, boards and emulator work now allow Arcade Side B to reconstruct.

A game reconstructed from fragments

Darkmist never needed a lost princess or a grand ending to become mysterious. Its mystery came later, after the boards were pulled, the converted cabinets changed games, and most of the people who had seen it moved on. What survived was scattered: a few PCBs, a pair of flyers, instruction cards, a conversion manual, trade-magazine paragraphs, a giant map assembled by fans, and a group of Japanese arcade players stubborn enough to study the thing decades later. Put those fragments back together and the game looks less like a failed footnote and more like a peculiar snapshot of arcade design in transition: part scrolling action game, part maze, part inventory puzzle, part miniature RPG, and entirely willing to punish anyone who assumes they already understand it.
